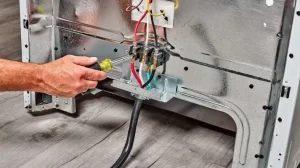

If you are planning to install an electric stove in your home you must know what size wire for the electric stove.
For an electric stove, the wire size you need depends on the stove’s electrical rating.
The wire size is also determined by the American Wire Gauge (AWG), where a lower gauge number indicates a thicker wire.
Let’s get details!
Quick Answer: What Size Wire Do You Need for an Electric Stove?
In general, 10 Gauge AWG is recommended for currents up to 30 amps, 8 Gauge AWG for currents 40 to 50 amps, and 6 Gauge AWG for currents greater than 50 amps.
Here is a table chart with wire gauge sizes, amperage ratings, and recommended uses for each:
| Wire Gauge | Amperage Rating | Recommended Use |
|---|---|---|
| 10 | Up to 30 | Electric stove |
| 8 | 40 to 50 | Electric stove |
| 6 | Greater than 50 | Electric stove |
Why it’s important to choose wire size for Electric Stove
Choosing the right wire size for an electric stove is crucial for a few reasons:
Safety
The right wire size ensures that the electrical current is safely carried from the power source to the stove. If the wire is too thin, it can overheat, potentially causing a fire.
Efficiency
A wire that’s too thin might not be able to carry enough current for your stove to operate efficiently.
This could lead to performance issues, such as the stove not heating up properly.
Compliance with Electrical Codes
Electrical installations must comply with certain safety standards and codes, such as the National Electrical Code (NEC) in the U.S.
These codes specify minimum wire sizes for various appliances, including electric stoves.
Longevity of Appliance
Using the correct wire size can also extend the lifespan of your electric stove.
A wire that’s too thin can cause the stove to work harder than necessary, which could shorten its lifespan.
Cost Savings
While a thicker wire might be more expensive upfront, it could save you money in the long run by preventing potential damage to your stove or even your home.
Types of Wires Suitable for an Electric Stove
There are three main types of wires suitable for an electric stove: Aluminum wires, Copper wires, and Copper-clad aluminum wires.
Aluminum wires
Aluminum wires are lighter and less expensive than copper wires.
They are a good choice for carrying electric current over long distances, such as between power poles.
However, they can oxidize and are not as durable as copper wires. This can lead to problems with electrical connections and safety hazards over time.
Copper wires
Copper wires are highly conductive and durable.
They are a good choice for carrying electric current over short distances, such as within a building.
However, they are heavier and more expensive than aluminum wires. This can make them more difficult to work with and more expensive to install.
Copper-clad aluminum wires
Copper-clad aluminum wires combine the lightweight of aluminum with the conductivity of copper.
They are a good choice for carrying electric current over long distances, such as between power poles.
They are also less expensive than pure aluminum or copper wires.
However, they can be more expensive than pure aluminum or copper wires and are not as conductive as pure copper wires.
They can also corrode over time.
Safety Standards and Building Codes to consider when choosing the electric stove
National Electrical Code (NEC) Guidelines
The National Electrical Code (NEC) is a set of guidelines that ensure the safe installation of electrical wiring and equipment in the United States.
It’s important to note that NEC guidelines have been expanded in the 2020 edition to include receptacles up to 250-volt.
This means that receptacles that operate at 250-volt, such as those for an electric stove, would now need Ground-Fault Circuit-Interrupter (GFCI) protection.
However, this is only required if the electric stove is installed within six feet of the edge of the sink.
Local Building Codes
Local building codes are sets of rules and requirements intended to promote the design and construction of safe buildings.
These codes are usually based on the recommendations of model codes like the NEC, but they may vary at the discretion of the local code authority.
Therefore, it’s crucial to check with your local building department for specific code requirements for your situation.
For instance, most local codes follow the NEC for kitchen electrical requirements, which cover circuits for outlets, lighting, switches, and appliances.
Certifications and Testing
Certifications and testing are crucial to ensure that your electric stove meets safety and performance requirements.
For instance, CSA Group provides comprehensive evaluation and testing services for household appliances.
These services include safety, performance, energy-efficiency testing, and even cybersecurity for smart appliances.
Additionally, ISO 19867-1:2018 specifies laboratory measurement and evaluation methods for emissions, energy efficiency, safety, and durability of cookstoves.
Although this document does not cover electric stoves specifically, the safety evaluation of electric stoves can be found in IEC 60335-2-6.
Factors Influencing Wire Size Selection for an Electric Stove
Stove’s Electrical Rating
The electrical rating of the stove determines the amount of current that will flow through the wire.
The higher the stove’s electrical rating, the thicker the wire needed to handle the current safely.
For example, most electric stoves require a 50 amp circuit breaker, which commonly uses 6-gauge wire.
Distance from Circuit Breaker
The distance between the stove and the circuit breaker affects the voltage drop in the wire.
Longer distances require thicker wires to prevent voltage drops, which can affect the efficiency and safety of the electric stove.
Ambient Temperature
The ambient temperature in the area where the wire is installed can affect its ability to carry current safely. High temperatures can cause wires to overheat, leading to potential hazards.
It’s crucial to consider the ambient temperature and choose a wire size that can handle the heat generated by the stove.
Wire Material
Copper and aluminum are commonly used materials for electric stove wiring.
Copper wires are more conductive than aluminum, but they are also more expensive.
So, your choice of wire material will also depend on your budget.
Installation Method
The installation method can also affect the wire size selection.
Direct burial of the wire requires a thicker wire gauge than wiring inside a conduit.
Cable jacket type also plays a role; indoor-rated wire cannot be used outdoors, and outdoor-rated wire is often thicker to provide additional protection.
Safety and Compliance
Always prioritize safety and compliance with electrical codes and regulations.
Ensure that the chosen wire size meets safety standards and complies with the National Electrical Code (NEC) guidelines and local building codes. This ensures the installation is safe and meets the required standards.
Budget Constraints
The cost of installation can be a significant factor when choosing a wire size for your electric stove.
Larger gauge wires are generally more expensive, both in terms of material cost and labor for installation.
Therefore, you may need to balance the cost of the wire with the benefits of a thicker gauge.
How to Calculate the Correct Wire Size for Your Electric Stove
Calculating the correct wire size for your electric stove is crucial to ensure safe and efficient operation. Here are the steps to help you determine the appropriate wire size:
Determine the stove’s electrical rating
Check the stove’s manual or specifications to find the amperage rating. This information will guide you in selecting the appropriate wire size.
Consult the National Electrical Code (NEC) guidelines
The NEC provides guidelines for electrical installations and wire sizing. It contains information on wire size selection based on the current carrying capacity and thermal heating of the cable.
You can refer to the NEC or seek assistance from experts to determine the correct wire size for your application.
Consider the wire gauge
The wire gauge is determined by the American Wire Gauge (AWG) system. The lower the gauge number, the thicker the wire.
For example, a 6-gauge wire is thicker than an 8-gauge wire. Refer to the stove’s electrical rating and the NEC guidelines to determine the appropriate wire gauge.
Account for voltage drop
Excessively long cable runs can result in voltage drop. Voltage regulation is usually not a problem in well-designed electrical power systems.
It’s important to consider voltage drop for long cable runs. The NEC provides guidance on voltage drop calculations to ensure proper wire sizing.
Consider the insulation and wiring method
The insulation material and wiring method can affect the dissipation of heat. Different insulation materials have different temperature ratings, and the wiring method can impact heat dissipation.
Ensure that the wire size you choose is suitable for the insulation material and wiring method used.
Seek professional assistance
If you’re unsure about the calculations or need expert advice, consult a licensed electrician or contact experts in the field.
They can provide guidance and ensure that you select the correct wire size for your specific application.
FAQs About Wire Sizing for Electric Stoves
What type of circuit breaker is required?
A 40-amp or 50-amp circuit breaker is commonly used for electric stoves.
Can I use aluminum wire instead of copper?
Yes, but aluminum wire needs to be a larger gauge than copper to carry the same current. Consult local electrical codes for specifications.
Is the wire size dependent on the stove’s wattage?
Yes, the wire size should match the stove’s electrical requirements, usually stated in watts or amps in the owner’s manual.
Can I install the wiring myself?
It’s strongly recommended to hire a licensed electrician for any electrical work, including installing a stove, to ensure safety and code compliance.
Conclusion
Choosing the right wire size for your electric stove is crucial for safety and efficiency. Always follow safety standards and consider all relevant factors when selecting a wire. Happy cooking!
