When it comes to framing a house, shed, or any wooden structure, choosing the right size nails is crucial for both safety and durability.
If you don’t know what size nails for framing and choose the wrong size, it could lead to a shaky foundation or even structural failure.
This blog will guide you through the essentials of nail sizes for framing, ensuring your project stands strong and secure.

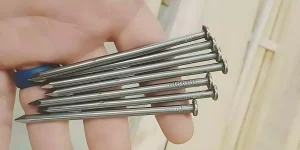

What Size Nails for Framing?
For framing in residential construction, 16d (3 1/2-inch) common nails are typically used for securing 2x4s. For lighter framing tasks like fastening 1-inch boards, 8d (2 1/2-inch) nails are often suitable. The most common nail sizes for framing include 6d, 8d, 10d, and 16d.
Here is a table chart for the specific uses of nail sizes in framing:
|Nail Size||Length (inches)||Common Uses|
|6d||2||Sheathing, subflooring, and bracing|
|8d||2 1/2||Framing, sheathing, and decking|
|10d||3||Framing, sheathing, and decking|
|16d||3 1/2||Framing, heavy construction, and rough carpentry|
Importance of Nail Size in Different Aspects
Choosing the right nail size is important for ensuring that your frame is structurally sound and can withstand the weight and forces it will be subjected to.
For example, if you are building a wooden deck, you need to use nails that are long enough and thick enough to securely hold the boards in place.
If you use nails that are too small, the boards may come loose over time, compromising the structural integrity of the deck.
Efficiency and Speed
Using the right size nails also makes your framing project more efficient and faster. You won’t have to waste time removing and replacing nails that are too small or too large.
For example, if you are framing a wall, using nails that are the right size will allow you to quickly and securely attach the studs to the top and bottom plates.
This will save you time and effort, allowing you to complete your project more quickly.
Using the wrong size nails can compromise the safety of your frame, potentially causing it to collapse or fail. It’s important to choose the right size nails to ensure that your frame is safe and secure.
For example, if you are building a treehouse for your children, you need to use nails that are strong enough to hold the weight of the treehouse and its occupants.
Using nails that are too small or weak could result in the treehouse collapsing, putting your children at risk.
The type of material you’re working with can also influence the nail size. For instance, if you’re working with hardwood, you might need longer and thicker nails compared to when you’re working with softwood.
This is because hardwood is denser and requires more force to drive a nail into it.
Nail Head Size
The size of the nail head is another factor to consider. Larger heads provide more surface area for holding power, while smaller heads are less visible and provide a cleaner finish.
For example, if you’re working on a project where appearance matters, like furniture, you might want to choose nails with smaller heads.
Cost and Availability
Lastly, cost and availability can also influence your choice. While it’s important to choose the right nail size for the job, you also need to consider what’s readily available to you and fits within your budget.
Types of Nails in Framing
Common nails are the most widely used type of nail in framing. They have a large head and a thick shank, making them ideal for general construction and framing.
For example, when building a wooden house frame, common nails would be a suitable choice due to their strength and durability.
Box nails are similar to common nails but have a thinner shank. They are used for lighter framing applications where a common nail would be too large.
For instance, if you’re framing a small shed or chicken coop, box nails could be an ideal choice.
Ring-shank nails have a series of rings along their shank, which provides extra holding power. They are commonly used in areas where high winds or other forces may cause the frame to shift.
If you’re building a coastal home that’s exposed to strong winds, ring-shank nails would provide additional security.
Screw-shank nails have a twisted shank that provides extra holding power. They are commonly used in areas where high winds or other forces may cause the frame to shift.
For example, they might be used in the construction of a hurricane-resistant home.
Duplex nails have two heads, making them easy to remove. They are commonly used in temporary framing applications where the frame will be dismantled after use.
If you’re building a film set or a temporary shelter, duplex nails would be an excellent choice due to their easy removal.
How to Choose the Right Nail Size for Your Framing Project
Types of Framing: Wall, Floor, Roof
When choosing the right nail size for your framing project, first know what you’re framing. Wall framing often uses 16D common nails. Floor and roof framing might need different sizes.
For example, if you’re framing a roof, you might want to use 8D ring-shank nails for better grip.
Check how thick your wood is. If it’s a 2×4, it’s actually 1.5 inches by 3.5 inches! For 2x4s, 16d nails work great.
They’re 3 1/2 inches long and go through the wood nicely, leaving enough nails to grip the second piece of wood.
Buildings have to hold a lot of weight. Think of all the stuff you’ll put inside!
If your frame will carry heavy things, like a bunch of books or furniture, go with bigger, stronger nails. Maybe even go with 20D nails if you’re really loading up the room.
Local Building Codes
Ah, the rulebook! Each city has its own rules for building. Always look at these rules to know which nail size to use.
Sometimes, they even want you to use specific types of nails.
Availability and Price
Let’s be real. Sometimes it’s about what you can find and afford. 16d common nails are usually easy to find and not too pricey. But if you’re on a tight budget, see if smaller nails meet your needs and codes.
Tools You’re Using
Using a hammer? Or a nail gun? Nail guns often need special nails. Make sure your tools and your nails are friends.
For example, if you’re using a framing nailer, buy nails labeled “for framing nailers.”
Factors Affecting Nail Size Choice in Framing
Material Being Framed
The material being framed will affect the size of nails you should use.
Different materials have different strengths and require different sizes of nails to ensure that they are securely attached.
The depth at which the nail penetrates the material being framed will also affect the size of the nail you should use.
Deeper penetration requires larger nails to ensure that they are securely attached.
Weight of the Frame
The weight of the frame will also affect the size of the nails you should use. Heavier frames require larger nails to ensure that they are securely attached.
Local Building Regulations
Local building regulations may specify the size of nails that must be used in certain types of framing. Be sure to check your local building codes before starting your project.
Weather and Environmental Conditions
Weather and environmental conditions can also affect your choice of nail size when framing.
In areas with high winds or other extreme weather conditions, larger nails may be required to ensure that the frame is securely attached.
Required Holding Power
The required holding power of the nails will also affect the size of nails you should use. Frames that will be subjected to heavy loads or forces require larger nails to ensure that they are securely attached.
Cost and Availability
The cost and availability of different nail sizes may also affect your choice. Choose a nail size that is readily available and fits within your budget.
Practical Tips for Framing with Nails
Pre-drilling holes for your nails can make your framing project easier and more efficient. It also reduces the likelihood of splitting the wood.
For example, if you’re framing a wall with pine studs, pre-drilling the holes can prevent the wood from splitting when you drive in the nails.
Be sure to place your nails in the correct locations to ensure that your frame is structurally sound. Follow the manufacturer’s instructions or consult a professional if you’re unsure.
For instance, when nailing two studs together, it’s important to space the nails properly to ensure a strong bond.
Make sure that your nails are driven to the correct depth to ensure that they are securely attached. Nails that are driven too deep or not deep enough can compromise the structural integrity of your frame.
A good rule of thumb is to drive the nail so that the head is flush with the surface of the wood.
Be sure to wear appropriate safety gear when framing with nails, including eye and ear protection.
Safety should always be your first priority when working on any construction project.
For example, wearing safety glasses can protect your eyes from flying debris when hammering nails into wood.
Common Mistakes to Avoid When Choosing Nails for Framing
Using the Wrong Type
Using the wrong type of nail can compromise the structural integrity of your frame. Be sure to choose the right type of nail for your framing project.
Ignoring Building Codes
Ignoring local building codes can result in a frame that is not up to code and may be unsafe. Be sure to check your local building codes before starting your project.
Skimping on Quality
Skimping on the quality of your nails can result in a frame that is not structurally sound. Choose high-quality nails from a reputable manufacturer.
Overloading with Inadequate Nail Size
Overloading a frame with an inadequate nail size can result in a frame that is not structurally sound. Be sure to choose the right size nails for your framing project.
Incorrect spacing of your nails can compromise the structural integrity of your frame. Be sure to space your nails correctly according to the manufacturer’s instructions or consult a professional if you’re unsure.
Can I use 16D nails for all residential framing tasks?
No, while 16D nails are common for framing walls with 2x4s, different tasks may require other sizes like 6D, 8D, or 10d nails.
Are ring-shank nails better for high-wind areas?
Yes, ring-shank nails offer extra holding power and are recommended for areas exposed to high winds.
Do box nails work well for heavy construction?
No, box nails have a thinner shank and are generally used for lighter framing tasks.
Does pre-drilling holes prevent wood from splitting?
Yes, pre-drilling holes can help prevent the wood from splitting when driving in the nails.
Are duplex nails suitable for permanent structures?
No, duplex nails are designed for temporary structures due to their ease of removal.
Choosing the right nail size for your framing project is crucial. It ensures that your frame is structurally sound, efficient, and safe.
Consider factors such as the type of framing, material thickness, load requirements, and local building codes when choosing the right nail size for your project.
Follow our practical tips and avoid common mistakes to ensure that your framing project is a success.
