What Size Wire For 220v Hot Tub?
We may earn affiliate fees for purchases using our links (at no additional cost to you).
Everyone wants to be refreshed. A relaxing bath may help you feel refreshed after a long, stressful day.
Indeed, a hot tub can provide you with that. But you are unsure about the size of the wire you need for a 220V hot tub.
This article will guide you to the correct size wire for a 220V hot tub.
What Is Size Wire Necessary For A 220V Hot Tub?
All 220V tubs require a 4-wire hookup from your main circuit breaker panel.
The distance between the GFCI disconnect breaker panel and the tub must be at least 5 feet.
Typically, 50 amp, 2 pole main circuit breakers may power hot tubs. Some manufacturers of hot tubs demand 60-amp breakers.
| Categories | Size |
|---|---|
| 40 amp | 8 gauge |
| 50 amp, | 6 gauge |
| 60 amp | 6 gauge |
What Type Of Wire is For 220V Hot Tub?
The specifications for the wire gauge might not match our example.
Larger wire sizes may be needed for unusually lengthy lines, as decided by the electrician. Using wire that is too small to get by is a risky false economy.
UF-B Direct-Burial Wiring
At least certain areas may permit direct burial cable installation for the distance from the service panel to the disconnect box.
It is forbidden in other countries. Some electricians say working with UF-B cable might be difficult.
Pulling Wire
Electricians thread wires into conduit using a thin, spring-steel fish tape after it has been put together.
The tape is covered with wire-pulling lubricant for the first several inches.
That facilitates its effortless passage across the empty conduit’s right edges and bends. As the wires enter the line, lubricate them.
How To Wire My 220V Hot Tub?
One way to unwind after a long day at work is to use a hot tub. But it needs to be connected in compliance with rigid electrical regulations.
While doing this activity, protective gloves are also required. It should be between your home’s electrical breaker panel and the bathtub.
Shut Off The Main Breakers
Like any other electrical item, a hot tub complies with local codes before wiring. Consult a qualified electrician about this as well.
Before installation, the wiring must be examined. That is being done for your protection.
Start by cutting the power to your home’s main breaker.

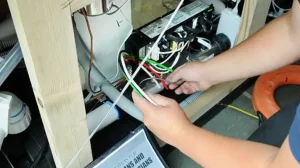

Prepare Your Hot Tub Control Panel.
For hot tub wiring, thermoplastic nylon insulation on the wire is recommended.
Be sure to adhere to the instructions with the tub panel while wiring the panel. The bottom of the GFCI breaker should be connected to the red, white, and black wires.
Leave at least 6 inches of extra wire.
Connect The Hot Tub Panel To Your Breaker Panel.
Verify that the main breaker is shut off and that there is no power present even if the primary breaker is off—exercise caution.
Because the lines of the electricity provider can still operate, exercise caution when working in the breaker box.
Connect a 240V double-pole GFCI circuit breaker to the red and black wires. The circuit breaker has to be identified if the hot tub is new.
Obtain A Hot Tub Inspection
If the wiring in your hot tub has now passed inspection, add water and turn it on. You’ll be able to see any leaks and jet engine issues.
If not, you may always seek expert assistance.
Understanding local codes and electrical equipment is necessary for hot tub wiring. So, employ a qualified electrician.
Installation Considerations
Installation considerations when wiring a 220V hot tub include:
Proper Wiring Techniques:
It is important to follow proper wiring techniques to ensure a safe and reliable installation.
This includes using the correct size wire, making sure all connections are secure, and following the manufacturer’s instructions.
Ground Fault Circuit Interrupter (GFCI):
A GFCI is required by the National Electrical Code (NEC) for all 220V hot tub installations.
The GFCI will detect any electrical current leaks and will shut off power to the hot tub to prevent electric shock.
Location of Electrical Components:
All electrical components, including the GFCI and disconnect switch, must be installed in a location that is easily accessible and not obstructed.
Protection from the Elements:
All electrical components must be protected from the elements, such as rain or snow.
This can be accomplished through the use of weatherproof covers or enclosures.
Conduit and Wiring Protection:
Wiring and conduit must be protected from physical damage and exposure to sunlight, which can cause degradation of the insulation.
This can be accomplished through the use of conduit or other protective measures.
Compliance with Local Codes:
It is important to comply with all local codes and regulations when installing a 220V hot tub.
This may include obtaining permits and having the installation inspected by a qualified inspector.
Hiring a Licensed Electrician:
If you are not comfortable with wiring the hot tub yourself, it is important to hire a licensed electrician to ensure a safe and reliable installation.
FAQs About The Right Size Wire For 220V Hot Tub
How Do I Determine The Wire Size For 220V Hot Tub?
The length and gauge of the wire are the 2 components that make up its size.
Consider the carrying capacity and the quantity of current the wire must convey to calculate the gauge of wire you require.
The amount of amps that must be sent via the wire directly relates to its gauge.
Is Burying The 220-Volt Hot Tub Wiring Necessary?
To ensure your safety, we suggest you do this. The cables that link your tub panel to the electrical breaker panel must be buried.
The ones that join your tub to the tub panel should also be suppressed.
We get that you don’t want the cables next to your hot tub to be visible to others.
It would be best to refrain from running the wiring underneath your hot tub.
Is A GFCI Breaker Necessary For A 220-Volt Hot Tub Wire?
All hot tubs are required to have GFCIs.
Any outlet that provides power to a hot tub must include a GFCI breaker, according to the National Electric Code.
That also applies to plug-in hot tubs. A 50–60 AMP breaker usually is needed for a 220-volt hot tub.
Final Thought
You must employ a professional electrician to set up a hot tub in your backyard.
What could be a pleasant home addition may soon turn into a tragedy if all of the wiring and connections are not properly installed and insulated.
So know the proper wire size for your 220v hot tub and enjoy every moment.
